There are several different types of video connectors used in laptops screens. For the most part the connectors are not interchangeable. Here are the most common types of video connectors that are in use today:
30-pin eDP – the main modern connector.
It is used on screens with resolutions up to 1920 x 1080. If your laptop was manufactured after 2014 and features screen resolution up to 1080p it is likely using this type of connector.
40-pin same physical connector standard but 3 different and incompatible signals
40-pin eDP Touch – used on newer laptops after 2015, the additional pins over the 30-pin eDP connector are needed for a built-in (on-cell) touchscreen functionality.
40-pin eDP QHD+ – used on newer laptops after 2015, the additional pins over the 30-pin eDP connector are needed for higher resolution options such as QHD (2560 x 1440) and even higher (4 channel eDP).
“40-pin eDP Touch” LCDs are not interchangeable with “40-pin eDP QHD+” screens. Even though the connectors are the same, plugging a “40-pin eDP Touch” LCD in-place of a “40-pin eDP QHD+” screen will not provide the touch functionality, and vice-versa, plugging a QHD screen in place of a 40-pin touchscreen will not provide higher resolution.
Typical LCDs are mounted with 2, 3 or 4 screws on the left and the right side of the LCD.
Some LCDs are mounted via built-in brackets.
Important! All product images match the exact bracket configuration of a replacement screen that will be sent to you. LCD brackets are built onto the LCD module – don’t confuse them with the LCD mounting brackets that are part of a laptop and should be unscrewed from the LCD and reused during the reinstallation process.
Examples of LCD mountings:
It is important to confirm the screen resolution before submitting an order: the same laptop model can come with different display resolutions.
If a laptop you are ordering a screen for works – turn it on and:
– go to On-line Resolution Check
OR
– for Windows XP, Windows 2000, Windows ME, Windows 98: Right-Click on Desktop -> Properties -> then in Display Properties navigate to Settings
– for Windows 10 and Windows 7 & Vista: Right-Click on Desktop -> Personalize -> Graphics Options
If a laptop you ordering a screen for is not functional:
– we recommend to pull your defective screen out and google screen model for specifications. You can find the screen model number on the sticker on the back of the screen. Check out our How to check your LCD screen model number article.
OR
– check your laptop manual under the laptop specifications section if you have one.
OR
– also you may be able to find you laptop specifications on manufacturers website using the laptop serial number, service tag or the model number (in Support section).
Letters on the right are the common abbreviations and can be used as resolution indicators.
3840 x 2160 (UHD) 4K
3200 x 1800 (QHD+)
3000 x 2000 (PixelSense, MS Only)
2880×1800 (Retina, Apple only)
2560×1600 (Retina, Apple only)
2560 x 1440 (QHD / WQHD) 2K
2304 × 1440 (Retina, Apple only)
2048 x 1536 (QXGA)
1920 x 1200 (WUXGA)
1920 x 1080 (WUXGA) Full HD
1680 x 1050 (WSXGA+)
1680 x 945 (WSXGA+)
1680 x 900 (WSXGA+)
1600 x 900 (WXGA++) HD+
1600 x 1200 (UXGA)
1440 x 960 (WXGA+)
1440 x 900 (WXGA+)
1400 x 1050 (SXGA)
1366 x 768 (WXGA) HD
1280 x 1024 (SXGA)
1280 x 720 (SD+)
1280 x 854 (WXGA)
1280 x 800 (WXGA)
1280 x 768 (WXGA)
1152 x 768 (WXGA)
1024 x 768 (XGA, outdated)
1024 x 600 (WSVGA, outdated)
1024 x 576 (WSVGA, outdated)
800 x 600 (SVGA, outdated)
640 x 480 (VGA, outdated)
Laptop screens vary in size and new sizes are frequently introduced. See the most common sizes below. Screen size is measured in inches, diagonally from corner to corner (1 inch=2.54 cm) as shown in the video below:
Buy with confidence with our No RISK purchase. We offer 10 days free returns and 30 days moneyback guarantee in our products (click here) to know more.
f you aren’t 100% satisfied with this item you may return it or exchange it for free within 10 days after delivery. Simply bring it back to our store or mail it back to us with a free, pre-paid return label. After 10 days no free return eligible, you can still either self return or pay the return courier charges.
I need to return an item.
Need help now? Let’s chat on whatsapp
in installation charges.
Free Shipping:
Delivery Time:
Tracking Your Order:
Order Changes & Cancellations:
Returns & Replacements:
Important Notes:
Contact Us:
If you have any questions regarding our shipping policy, please don’t hesitate to contact us via email at help@lapgadgets.co.in
Lap Gadgets offers a warranty on all our laptop parts to ensure customer satisfaction and protect against manufacturing defects. The warranty period varies depending on the part category:
Warranty Coverage:
Warranty Periods:
What’s Not Covered:
How to Make a Warranty Claim:
Additional Information:
Contact Us:
If you have any questions regarding our warranty policy, please don’t hesitate to contact us via email at support@lapgadgets.co.in
At Lap Gadgets, we are committed to ensuring your satisfaction with every purchase. Our return and replacement policy is designed to provide you with peace of mind and convenience. Below are the details of our policy:
Replacements:
Following the fulfillment of your order, we offer a hassle-free replacement process. Key points regarding replacements include:
Return Period :
Laptop Batteries & Chargers – 7 days Return window
Laptop Keyboard – 7 days return window
Laptop Screen – 3 days return window – Returns applicable only if the item comes in damage condition or different item received – No returns for color variation issue – birghtness or any other reasons.
Laptop Body case / hinges / SSD / Ram / – Returns applicable only if the item come in damage condition or different item received (no color variation return will not accepted). NO returns applicable for other reasons.
Returns:
Products may be returned within 7 days of the delivery date under the following circumstances:
Returns meeting the above criteria are eligible for a full refund or a free replacement, depending on the customer’s preference.
However, returns initiated due to customer error or compatibility issues occurs due to wrong purchase will incur a 10% deduction from the order value, along with actual two-way logistic charges. We strongly advise customers to seek clarification from our representatives prior to placing their order to avoid such situations.
Important Guidelines:
To ensure a successful return or replacement, customers must adhere to the following guidelines:
For any inquiries or assistance, please feel free to contact us. We are here to help.
All returned products undergo rigorous testing supervised by expert technicians selected by Lap Gadgets to ensure accuracy. Requests for returns of products found to be functioning correctly, as per their documentation, will be declined.
Thank you for choosing Lap Gadgets. Your satisfaction is our priority.
Lap Gadgets understands that there may be situations where you need to cancel your order. Here’s our policy to ensure a smooth experience:
Order Cancellation:
Important Notes:
You can cancel your order before it moves into the final packing or shipping stage.
For shipped orders & paid in advance, a small fee of 5% will be subtracted to recover processing and platform expenses.
If the payment was made using EMI, BNPL options, or international cards, the fee rises to 10% due to additional handling charges.
Timeframe for Refunds:
Contact Us:
If you have any questions regarding our cancellation policy, please don’t hesitate to contact us via email at help@lapgadgets.co.in or by phone at 0261-4517787 OR whatsapp us on : 7859818378
Order before 4pm . Select Rush Delivery in checkout page. Same Day Delivery Charges Rs 250/- know more
(Same day delivery available in Bengaluru, Chennai, Hyderabad, Mumbai, Pune, Delhi NCR, Ahmedabad, & Surat for prepaid orders only) order on holidays will be delivered next day.
We use industry best tools to protect your valuable data and privacy. Our payment security system encrypts your information throughout transmission. We never share your credit card details with any third-party vendors, and we don’t sell your information to others.
Buy with confidence with our No RISK purchase. We offer 10 days free returns and 30 days moneyback guarantee in our products (click here) to know more.
f you aren’t 100% satisfied with this item you may return it or exchange it for free within 10 days after delivery. Simply bring it back to our store or mail it back to us with a free, pre-paid return label. After 10 days no free return eligible, you can still either self return or pay the return courier charges.
I need to return an item.
Need help now? Let’s chat on whatsapp
Buy with confidence with our No RISK purchase. We offer 7 days free returns and 15 days moneyback guarantee in our products (click here) to know more.
Free shipping across nation for selected products. Shop at lapgadgets.co.in with confidence by mode of Cash on delivery / credit / debit card in selected cities. With more than 26000 pin code covered in India.
You can shop at lapgadgets.co.in with confidence. We have partnered with Paytm & Razorpay, a leading payment gatewayin India, to accept credit / debit cards, netbanking, wallet payment and electronic check payments safely and securely for our customers.
Best in class customer support. We consider your issues as ours. We are available watsapp (click here) or mail us your query at help@lapgadgets.co.in. Timings are 10:30 am to 6.30 pm
Get experts advice in buying correct laptop parts. Avoid the risk of laptop failure and other damage which may occur due to wrong part purchase. Our experts will be happy assisting you.
Online. In store. Always free.
If you aren’t 100% satisfied with this item you may return it or exchange it for free within 10 days after delivery. Simply bring it back to our store or mail it back to us with a free, pre-paid return label. After 10 days no free return eligible, you can still either self return or pay the return courier charges.
Need help now? Let’s chat on whatsapp.
Good Packing, Good Product, Quick Delivery

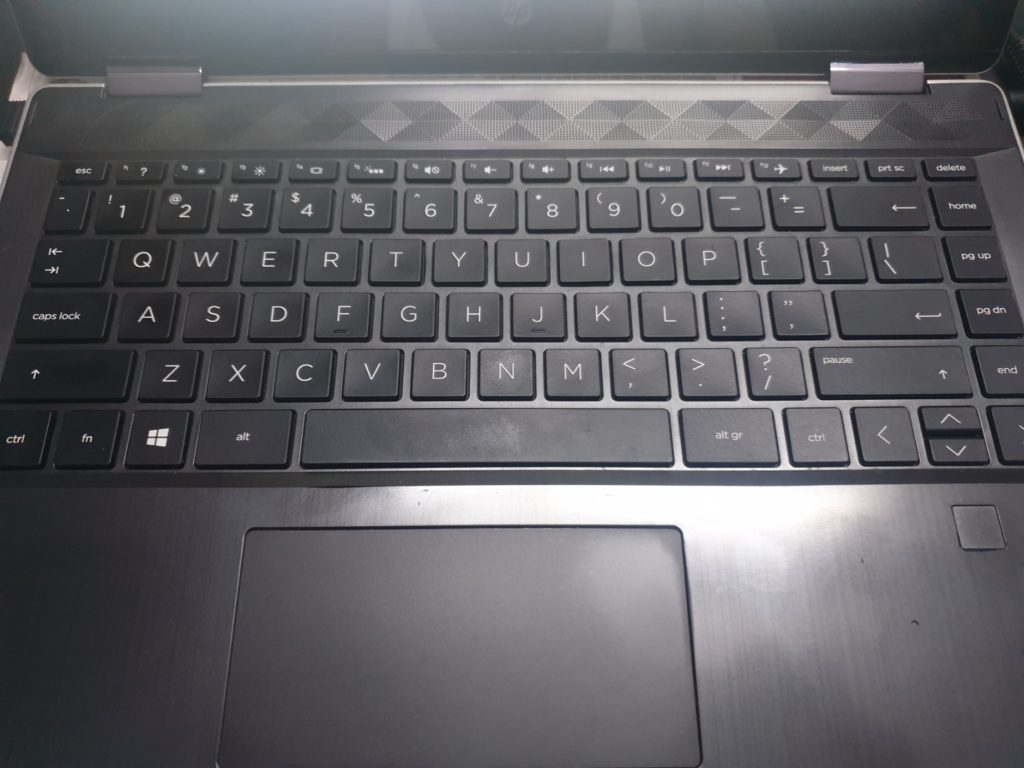

Island Keyboard is Excellent. Received as ordered and working fine.
